Stabilized power supply at low cost

Status
Not open for further replies.
V

Vermes

Advanced Member level 4
Advanced Member level 4
Joined
Aug 2, 2011
Messages
1,163
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,316
Activity points
22,318


It is a stabilized power supply on system LM317. The device uses home made voltmeter on ICL7107. Also power supply on LM7805 can be made for the device. All boards were made in thermal transfer method. The main advantage of the project is its low cost – many elements can be removed from disassembled old machines.

230V fuse was applied at the input and all the paths were protected with rosin and alcohol solution.

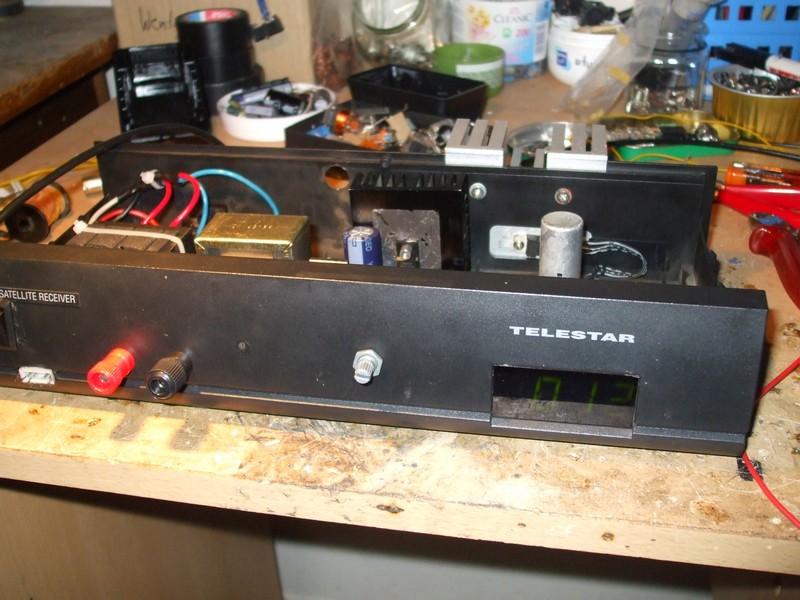

Pictures:





Link to original thread (useful attachment) – Kolejny zasilacz stabilizowany małym kosztem
