simulating the "Stripline parallel-coupled lines filter" on Advanced Design System

[ramin.ala]

simulating the "Stripline parallel-coupled lines filter" on Advanced Design System

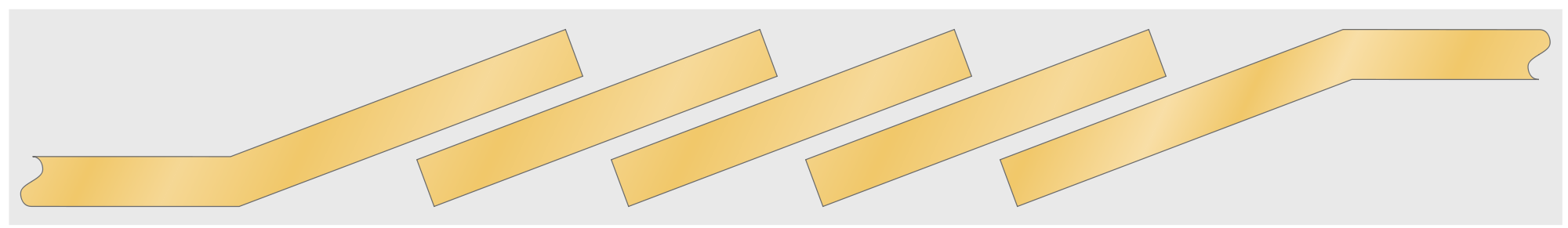

How can I draw the microstrip parallel-coupled lines in ADS (the file be attached in this post, shows the structure). In fact, these lines with unequal length, offset beginning position and desired angle are used frequently for designing the band-pass filters. suggested structure must be considered the coupling effect between lines.



[sv1437]

Re: simulating the "Stripline parallel-coupled lines filter" on Advanced Design Syste

There should be an option for importing the layout from AutoCAD into ADS.
Draw the layout in AutoCAD and import into ADS.

-sv



[volker_muehlhaus]

Re: simulating the "Stripline parallel-coupled lines filter" on Advanced Design Syste

Have a look at the ADS example mw_filter_prj



[BigBoss]

Re: simulating the "Stripline parallel-coupled lines filter" on Advanced Design Syste

Use "Passive Circuit DG - Microstrip Circuits" if you have license..
It's much easier than drawing..



[ramin.ala]

Re: simulating the "Stripline parallel-coupled lines filter" on Advanced Design Syste

There should be an option for importing the layout from AutoCAD into ADS.
Draw the layout in AutoCAD and import into ADS.

-sv

thank you. but imported file cannot consider the coupling effect. in addition, how can I use the imported file in schematic design (maybe those file are useful in momentum but how about optimization and ...)

---------- Post added at 12:23 ---------- Previous post was at 12:18 ----------

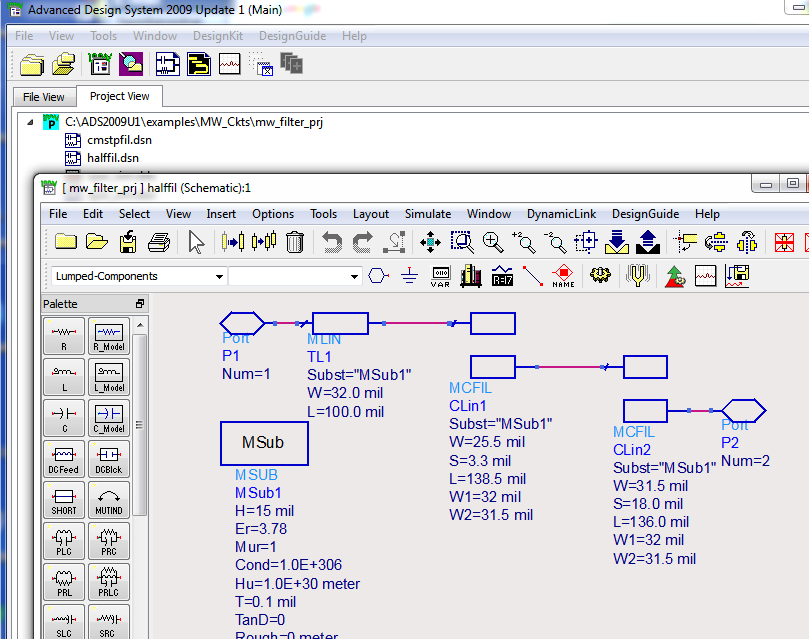

Have a look at the ADS example mw_filter_prj

thank you. but I think this structure is different with my request. Look at the angle of the strips.

---------- Post added at 12:26 ---------- Previous post was at 12:23 ----------

Use "Passive Circuit DG - Microstrip Circuits" if you have license..
It's much easier than drawing..

thank you. but I cannot find any structure in "Passive Circuit DG - Microstrip Circuits" regarding my request.



[volker_muehlhaus]

Re: simulating the "Stripline parallel-coupled lines filter" on Advanced Design Syste

but I think this structure is different with my request. Look at the angle of the strips.

The only difference is the bend at the filter input/output. You can use element MBEND.
