[SOLVED] Pspice VSIN source gives distorted wave form!! Please help

[themaccabee]

Hi,

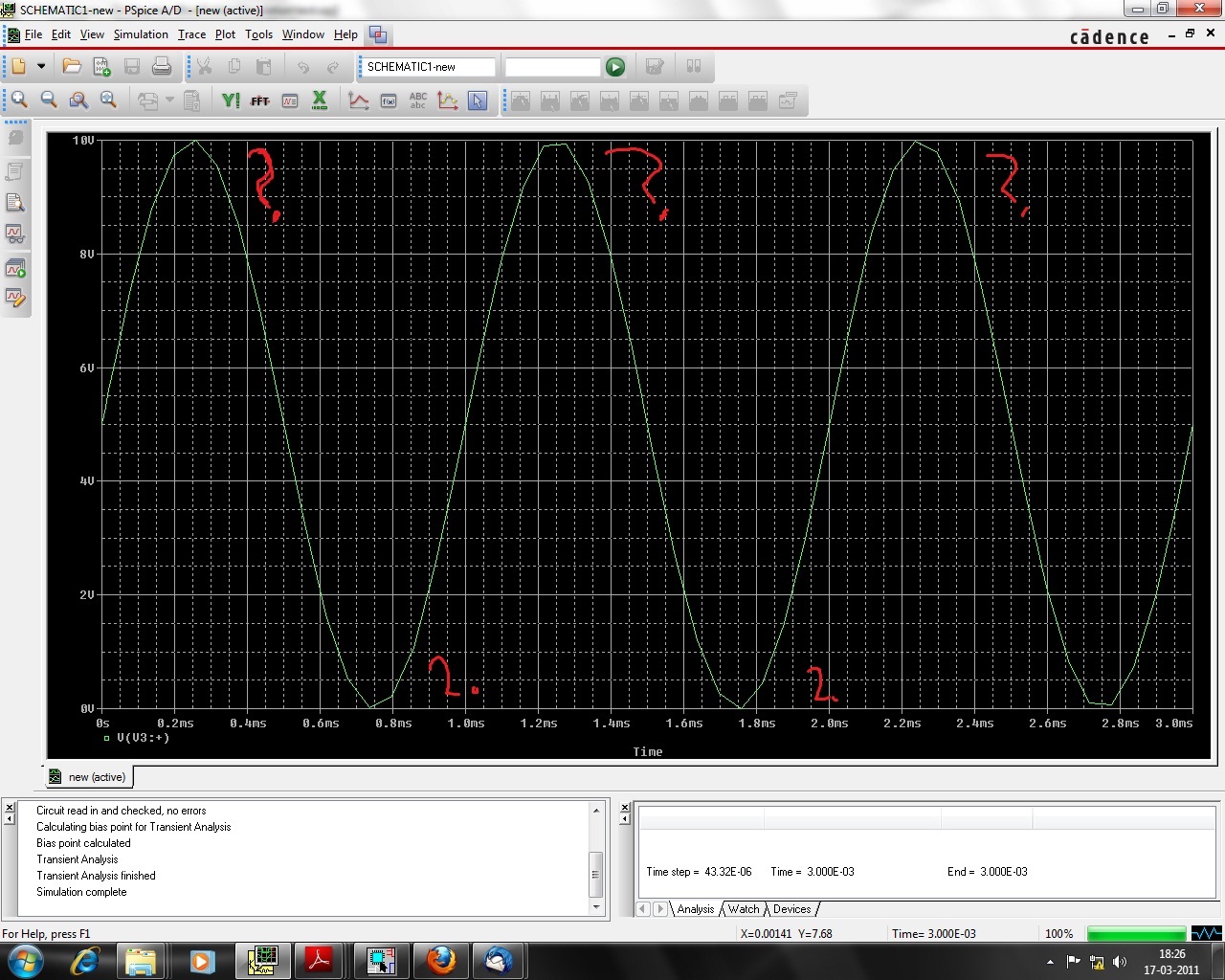

Im a learning Pspice (Cadence 16.2) now, I tried to simulate a sinewave output in Pspice..
But unfortunately im finding the output of the sine wave is distorted..
Does any one know ,,why it happens..may be is it due to some of the configuration setings in the simulation profile..
Please help

https://obrazki.elektroda.pl/89_1300366708.jpg
https://obrazki.elektroda.pl/36_1300366708.jpg



[keith1200rs]

Change the maximum time step to something smaller.

Keith.



[themaccabee]

It worked !! thanks..



[keith1200rs]

I always set the maximum time step to something a lot smaller than the default - the default is far to large usually.

Keith.
