Power amplfier based on TDA 7294

Status
Not open for further replies.
V

Vermes

Advanced Member level 4
Advanced Member level 4
Joined
Aug 2, 2011
Messages
1,163
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,316
Activity points
22,318

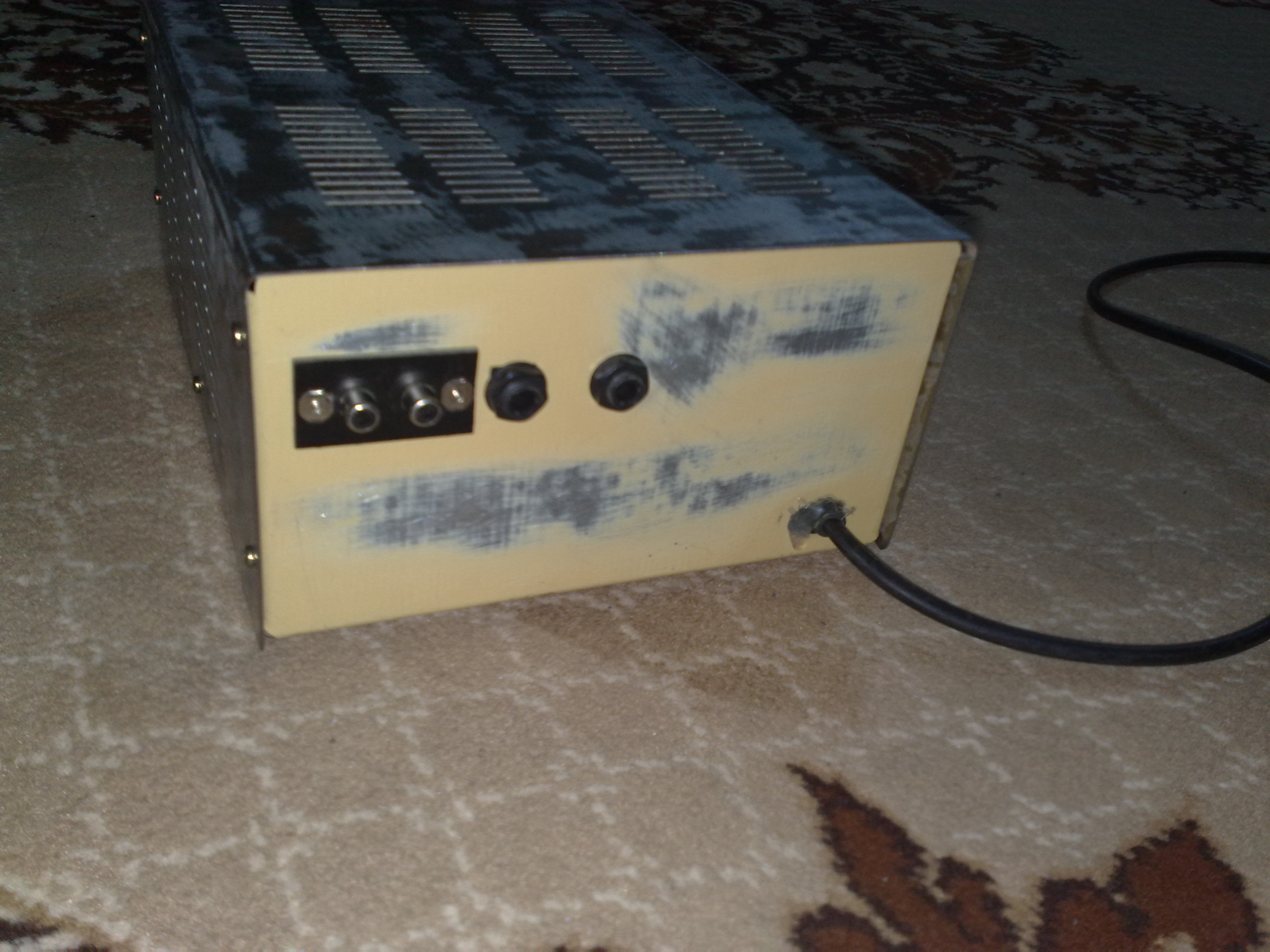

It is a power amplifier based on TDA 7294, which is powered by transformer TS 50/14 after rectifying and filtration through 10000uF – what gives 31V-0-31V.

List of components:
  • PCBs
  • SMD components
  • TDA 7294
  • transformer
  • 10000uF capacitor
  • ALPS potentiometer
  • housing
  • heat sink




Link to original thread - Końcówka mocy na TDA 7294
