hi..am just beginning to learn HFSS.
I have to model differential vias and need to know at what separation the GND vias need to be added for the return path.
I have simulated the example project "differential vias" given in viawizard 3.1 folder.
But when i plot the E fields over the traces and vias. only one of the differential pairs is getting excited. But differential lines..both will be excited in the opposite directions right?

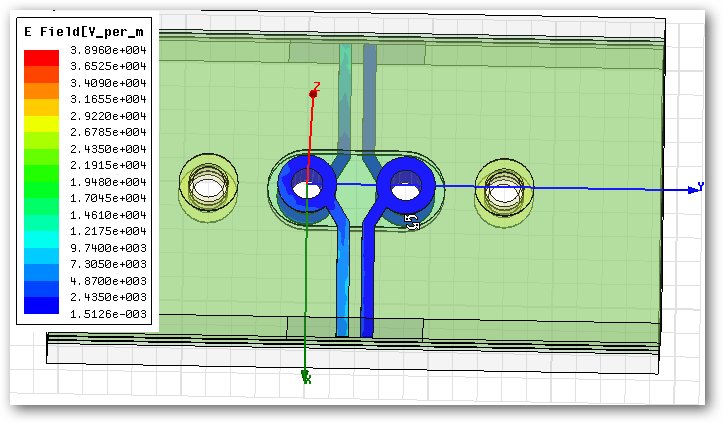

Am i missing something here. Please hep. Also i have attached an image of the sample model
