Microprocessor power supply 2x 0-24V 0-2,5A

Status
Not open for further replies.
V

Vermes

Advanced Member level 4
Advanced Member level 4
Joined
Aug 2, 2011
Messages
1,163
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,316
Activity points
22,318

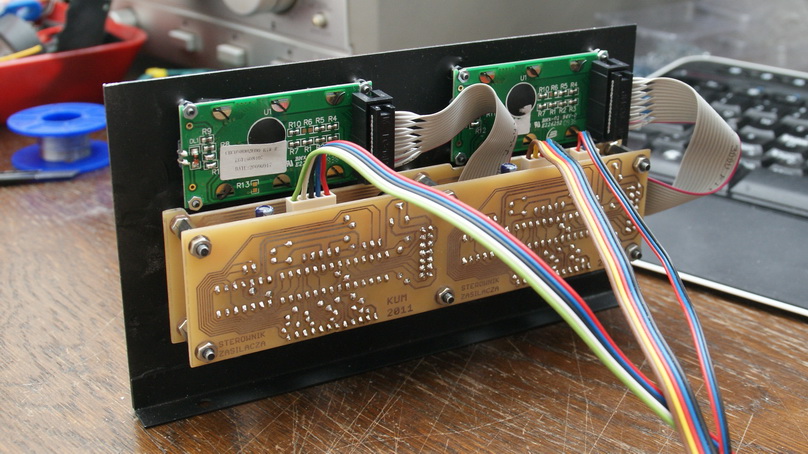

It is a microprocessor power supply of own production. An original driver of Nord Elektronik was used in the construction. Then boards were implemented.
Silicone pads under the transistors act as isolation. The power supply controller is based on Atmega8.
The power supply works excellent. When properly tuned, the precision reached is 0,10V and 0,10A. The device is used as a symmetrical power supply.

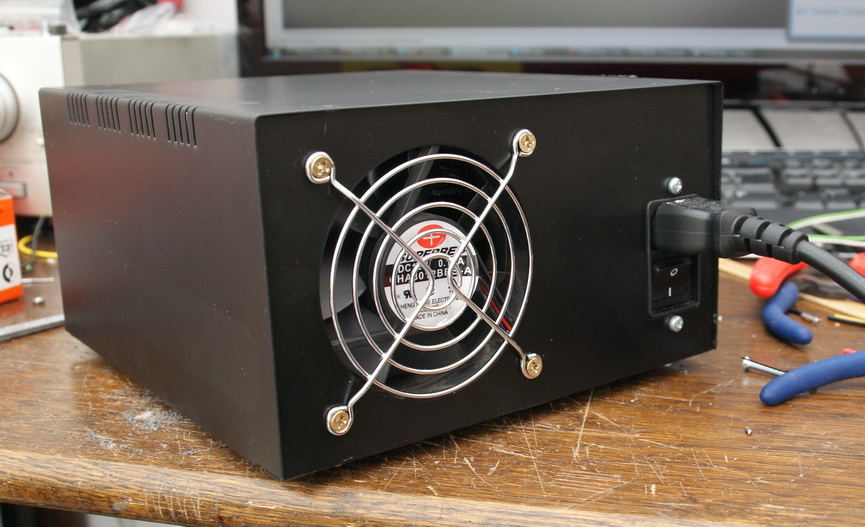

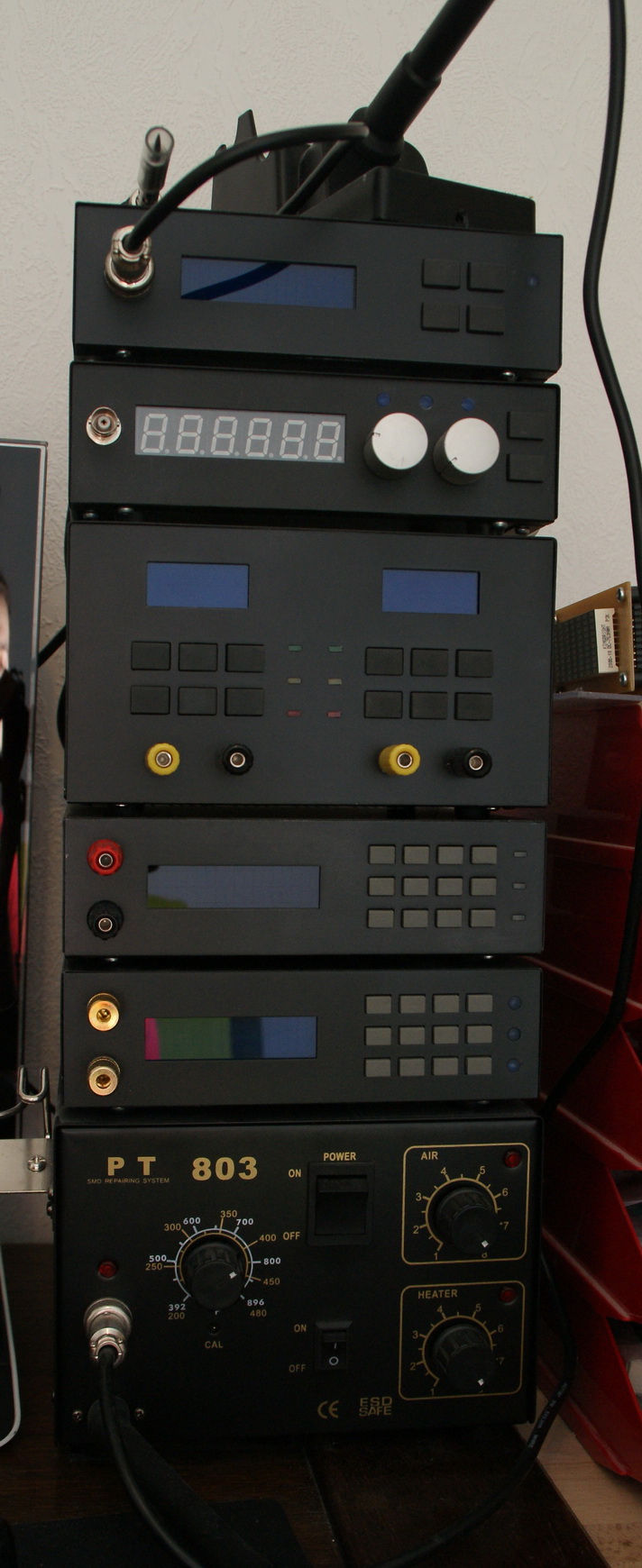

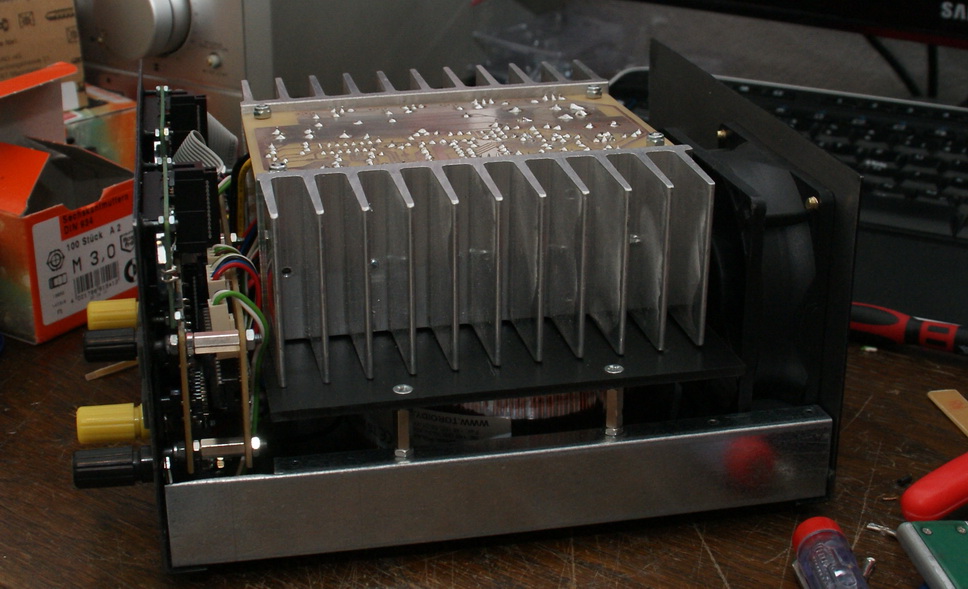

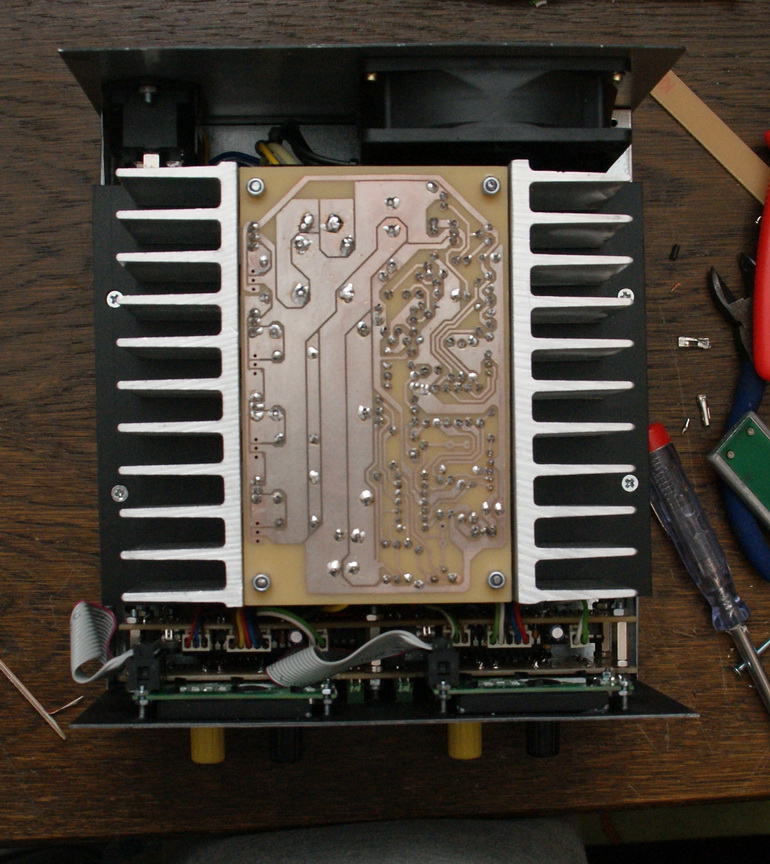

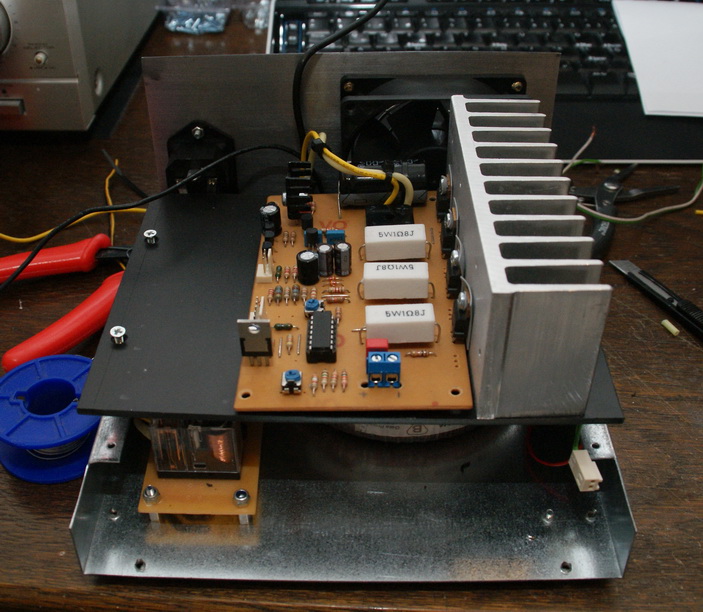

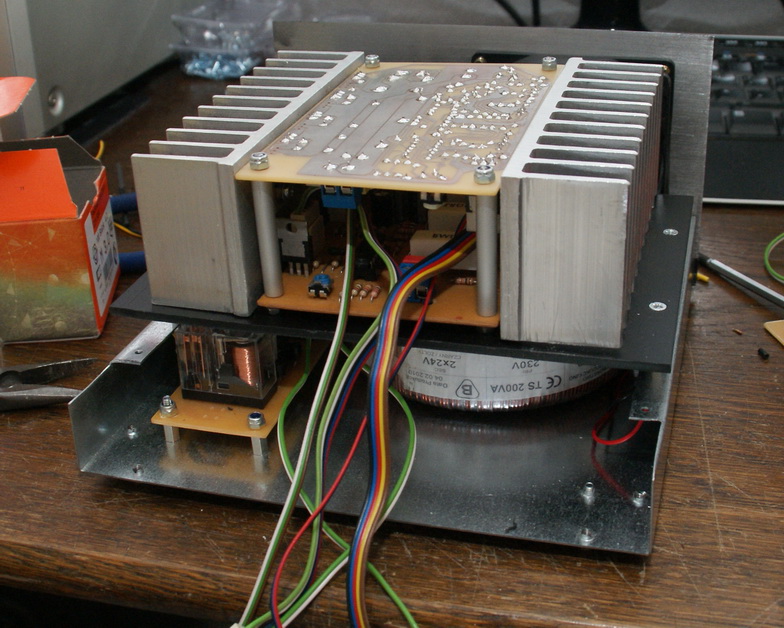

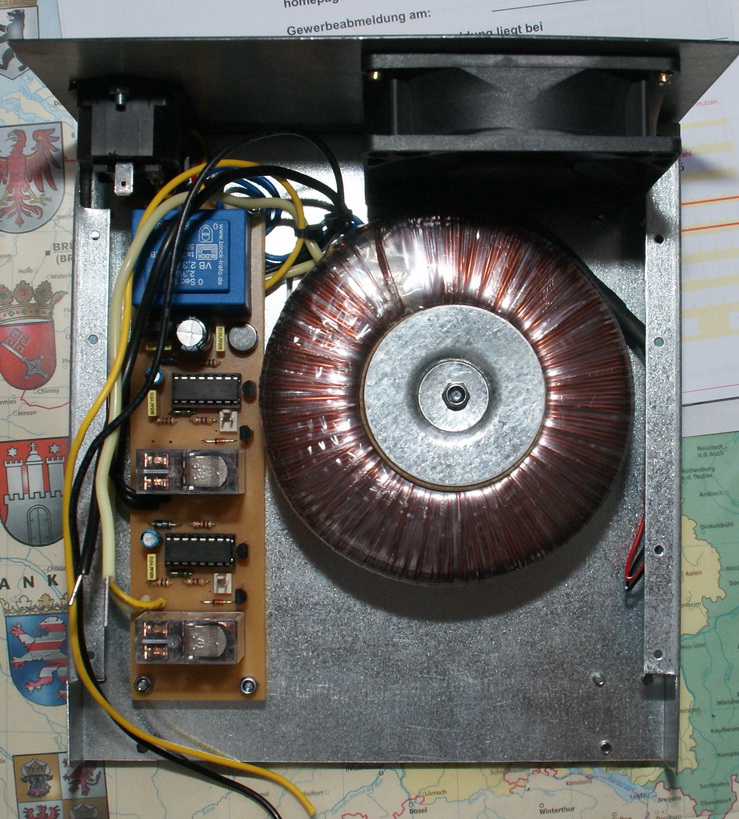

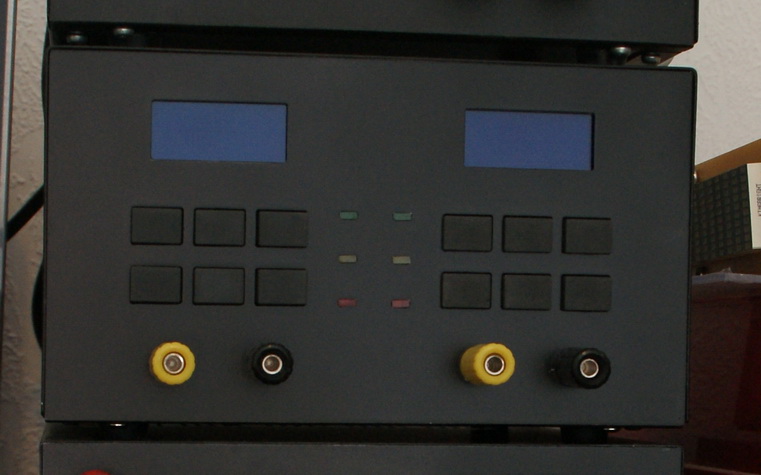

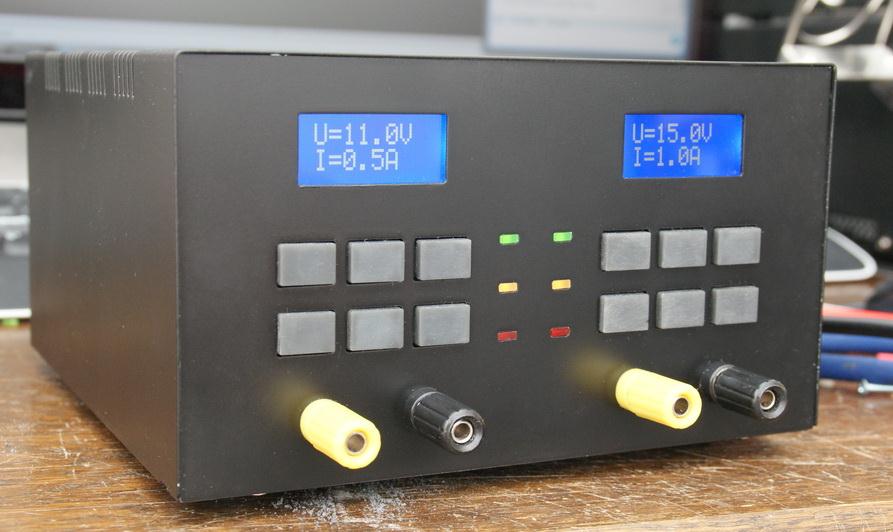

Below there are some pictures.




Link to original thread – Zasilacz mikroprocesorowy 2x 0-24V 0-2.5A
