High voltage generator home made

Status
Not open for further replies.
V

Vermes

Advanced Member level 4
Joined
Aug 2, 2011
Messages
1,163
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,316
Activity points
22,318


This device is a high voltage generator. It is made to power effects such as:
  • Jacob's ladder
  • plasma lamp
  • Marx generator
  • other works with WN

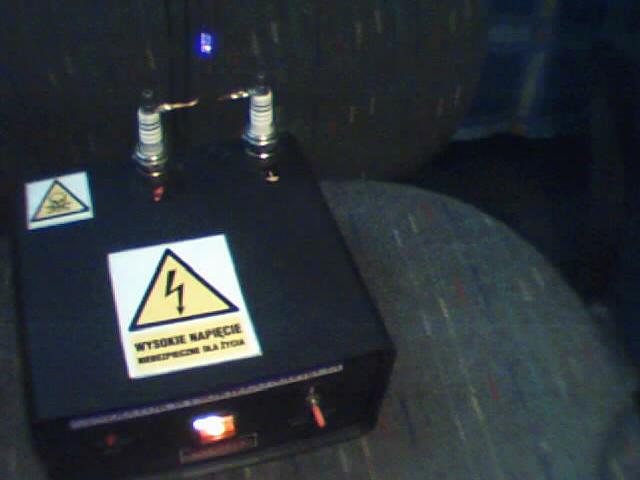

The system was built on two 2N3055 transistors mounted on a heat sink. WN generator has a switch for operation in two modes: normal and pull.



LED that indicates the coil working was added to the schema.



Two spark plugs from a car were used as the output terminals.



Link to original thread (useful attachment) – Generator wysokiego napięcia
