[SOLVED] Enhance the PCB size without disturbing routing

Status
Not open for further replies.
F

fasishah001

Newbie level 6
Joined
Nov 29, 2012
Messages
11
Helped
0
Reputation
0
Reaction score
1
Trophy points
1,281
Location
lahore
www.edaboard.com
Activity points
1,364

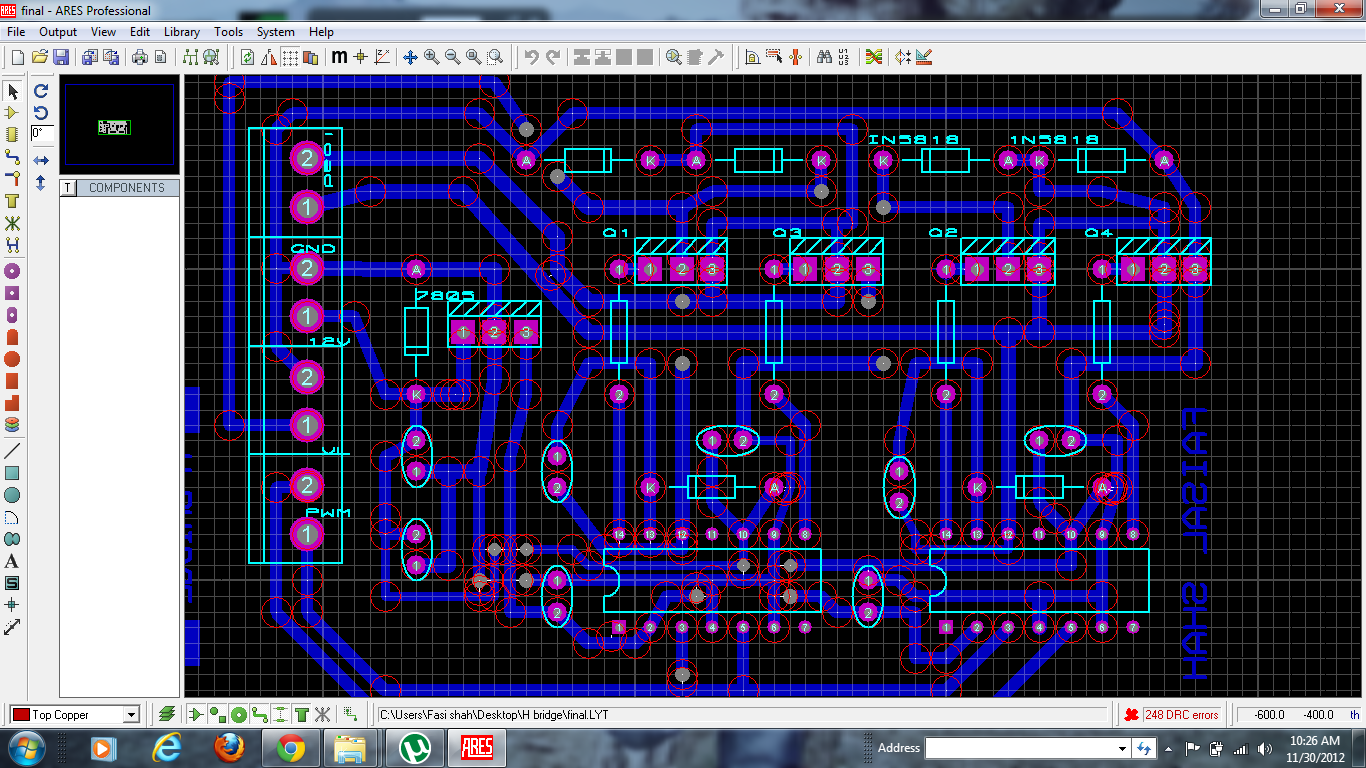

i made this PCB design of H bridge using mosfet and ir2110 on Proteus, but unfortunatly its too small, i want to enhance its size with disturbing routing with any command or some other approperiate way..


This is such a simple board, just move every component out and fix the routes!!! Don't look like it's going to be more than an hour worth of work, why even consider any tricks? Just do it.


I have never used Proteus but surely you can simply redefine the outline or move the components and tracking as a block? If not, it is time to look for a decent layout package - rerouting should not be necessary for such a simple requirement.

Keith


I thought he meant to make the board bigger to spread out the components. If all he want is to move the circuit to a bigger board, that should be very easy. In OrCad, all I need to do is redraw the board outline to a bigger size and reset the origin!!! 2 minutes max!!!
