display 24x2 optrex information

[erchiu]

hi to all
i have an display with 24 character in 2 line and 9 pin,
i'm searching in to web some information and the datasheet so you can use it, but so far i don't have find nothing useful.
another thing that i know is that this display have the characters in red color, but without backlight

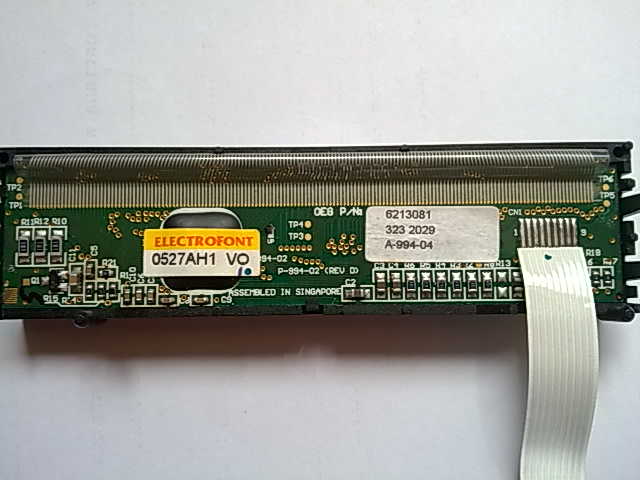

on this display there are some labels:

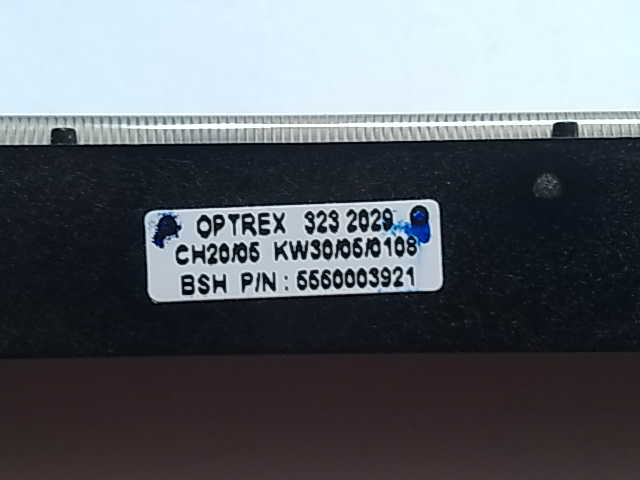

OPTERX 323 2029
CH 20/05 KW30/050108
BSH P/N 5560003921



6213081
323 2029
a-994-04


electrofont
0527AH1 VO


I thank you in advance

bye erchiu



[bigdogguru]

Did the unit originate out of an appliance? Dishwasher?

I looks like it is an older discontinued Optrex model.

I have found several references to replacement parts in appliances, but no datasheet.

You may have to contact Optrex and inquire as to the availability of a datasheet.

If you ask nice, they may offer to fax or if available email you the PDF file.

Also be aware it maybe a custom display with specialized fonts/characters for its intended application.

BigDog



[erchiu]

thanks for your answer.
this display is an component part of an NEFF oven (bosch group).
the date production is 2005.
i have tryed to contact the kyocera-opterex for datasheet, but they don't answered still.
the use that i want do is connect it to an microcontroller.
now this my controller have an display with 16 pin (of which 2 for the backligth) while this have only 9 pin.


LCD Display pin LCD Functionality
1 Ground
2 +5 Volt
3 Vee (LCD contrast)
4 RS (Register Select)
5 R/W (Read/Write)
6 E (Edge Enable)
7 DB0 (databit 0)
8 DB1 (databit 1)
9 DB2 (databit 2)
10 DB3 (databit 3)
11 DB4 (databit 4)
12 DB5 (databit 5)
13 DB6 (databit 6)
14 DB7 (databit 7)


any help can be useful
thanks erchiu



[LeckyTreky]

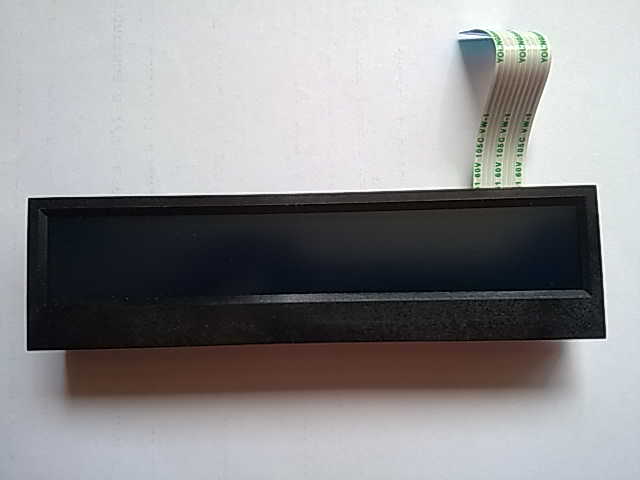

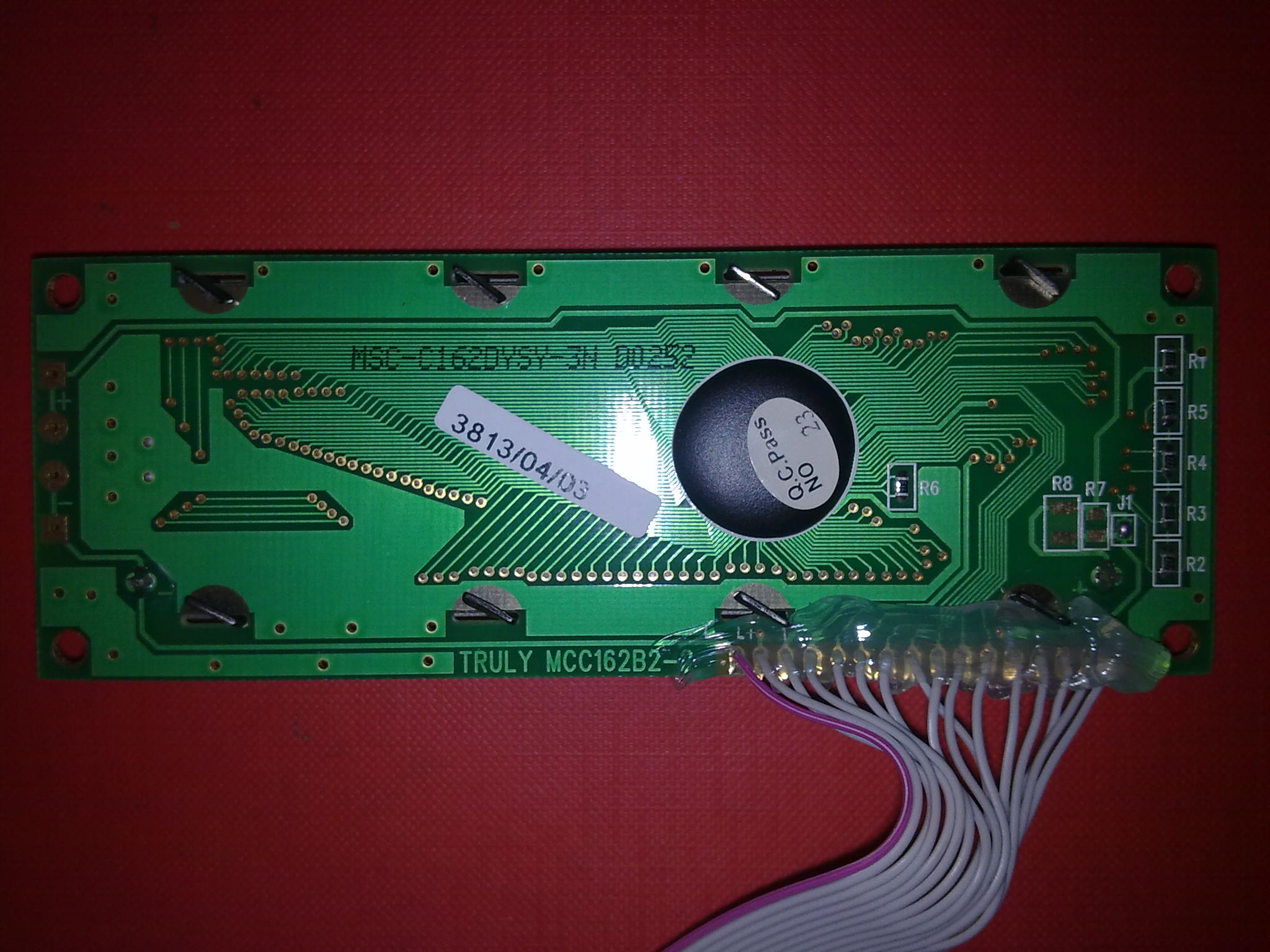

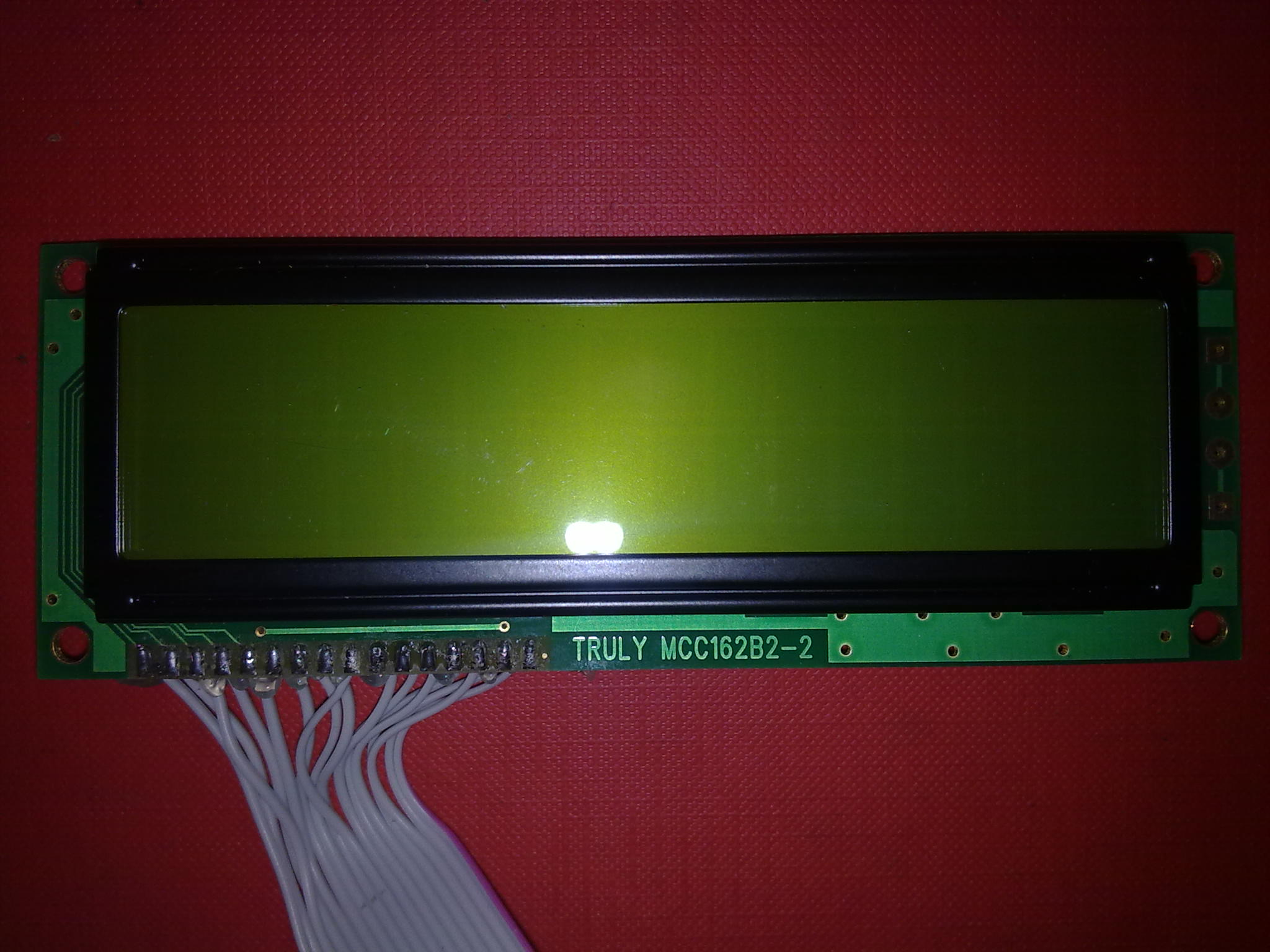

I have this exact same display but the ribbon has become detached from the board, does anyone know how I go about reattaching this?

Thanks in advance

Matt



[bigdogguru]

I have this exact same display but the ribbon has become detached from the board, does anyone know how I go about reattaching this?

It appears to be through hole, I would recommend desoldering each hole with a solder sucker or desoldering station and the strip each lead and resolder.

You could also replace the ribbon cable with a header.

BigDog



[LeckyTreky]

Thanks very much for your speedy reply, just to make it clear I was referring to the display in the original post

Thanks again

Matt

OPTERX 323 2029
CH 20/05 KW30/050108
BSH P/N 5560003921
