Binary clock with 6 column LED display

Status
Not open for further replies.
V

Vermes

Advanced Member level 4
Advanced Member level 4
Joined
Aug 2, 2011
Messages
1,163
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,316
Activity points
22,318

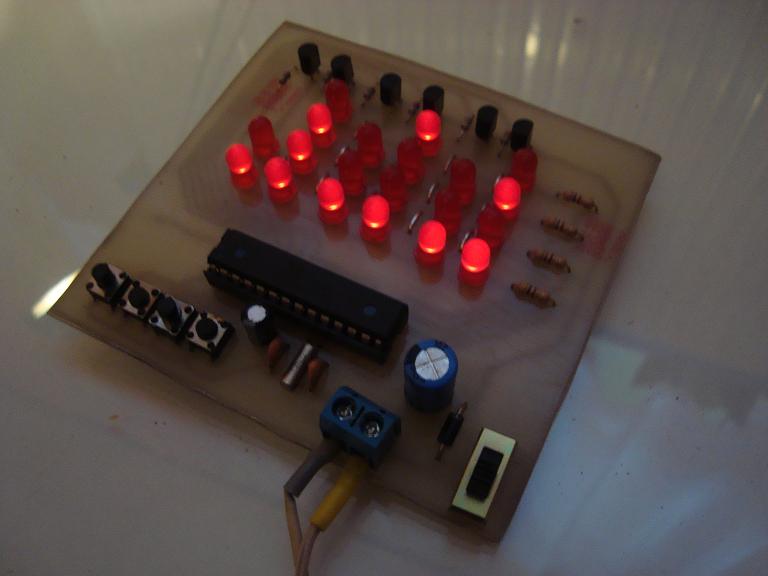

It is a home made binary clock. Time is displayed on 6 column LED display. Well known and popular microcontroller Atmega8 controls the device and countdowns time with watch quartz.
The frequency of multiplex was increased to 1,56kHz. It prevents flickering.
Power supply from 4,5V to 6V.
The following video presents operation of the binary clock:

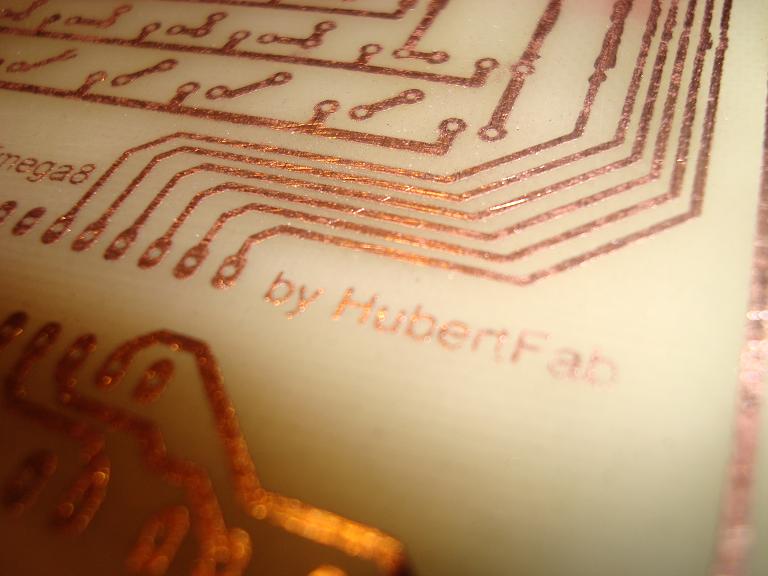

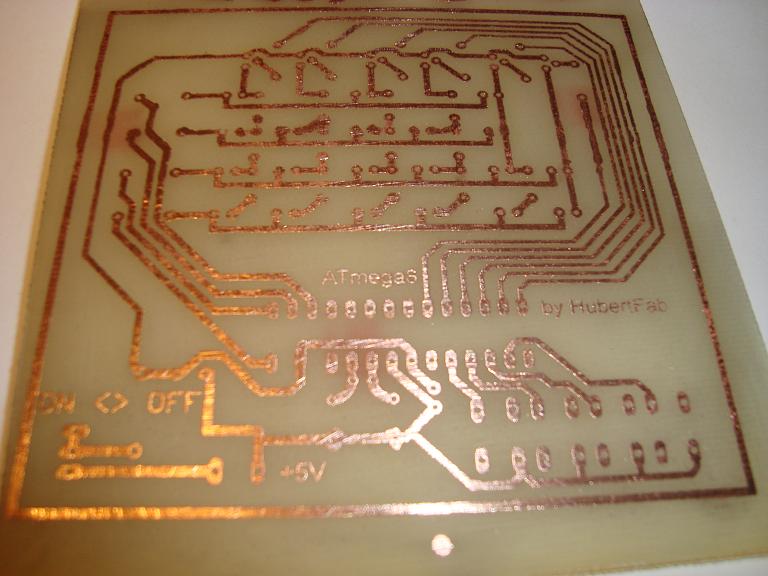

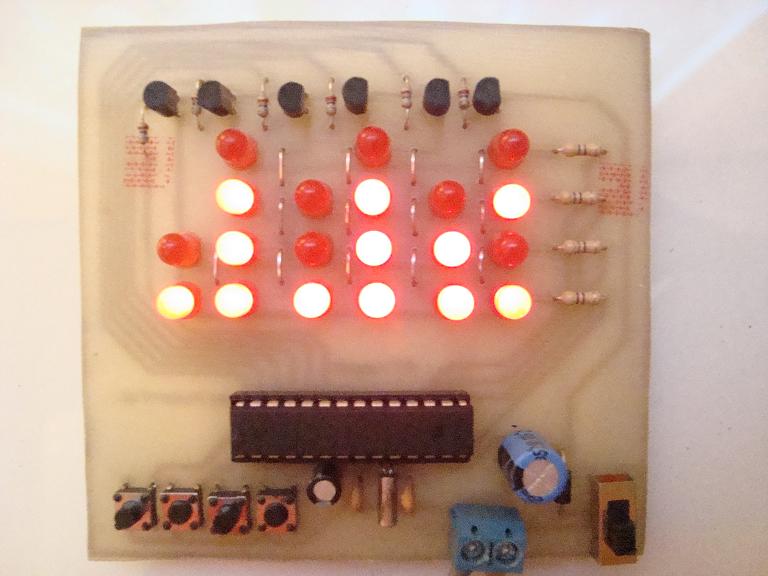

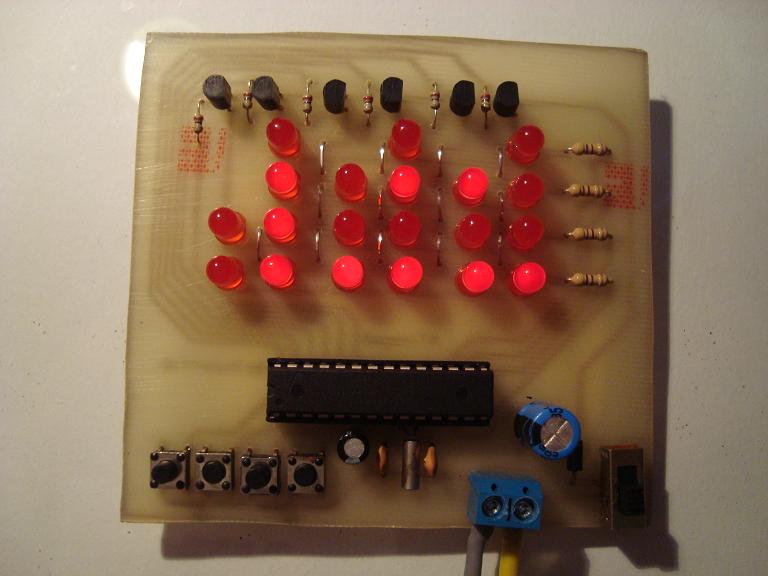

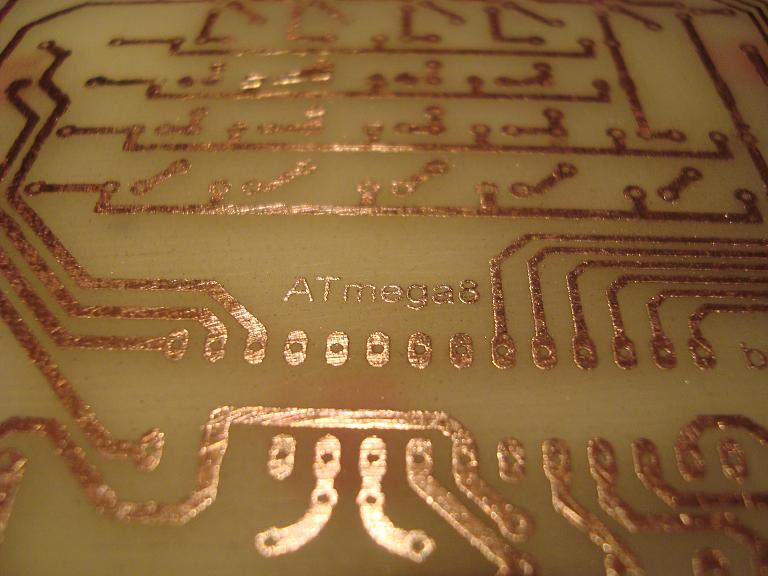

Pictures:



Link to original thread (useful attachment) – Zegar Binarny v2 by HubertFab
