Jan 27, 2013 #1 R rameshrai Full Member level 3 Joined Aug 16, 2010 Messages 158 Helped 7 Reputation 14 Reaction score 7 Trophy points 1,298 Activity points 2,272 Hi, Can anybody help me with my ckt? why is that i am getting 0A and 0V across the ckt? it makes no difference whatever input dc source voltage i give. thanks all, ramesh
Hi, Can anybody help me with my ckt? why is that i am getting 0A and 0V across the ckt? it makes no difference whatever input dc source voltage i give. thanks all, ramesh

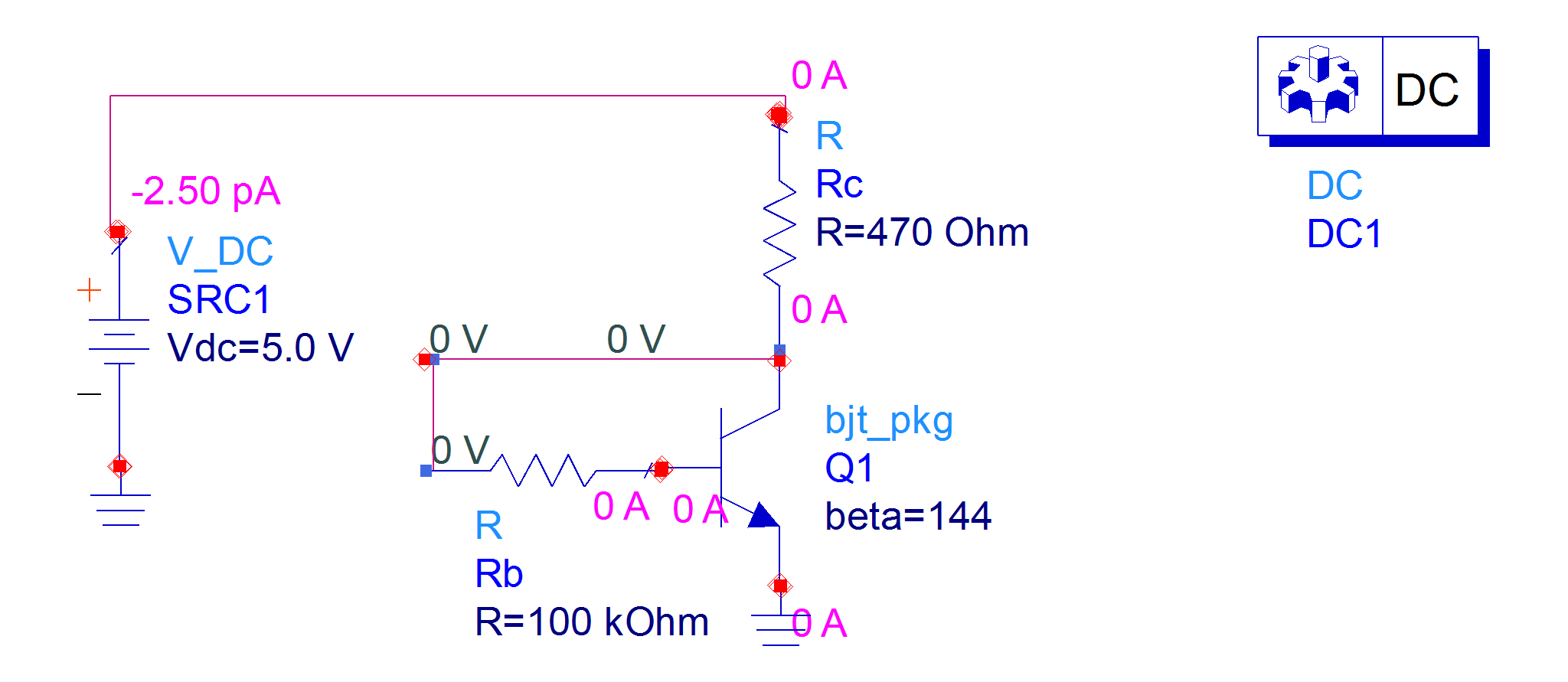

Jan 28, 2013 #2 B BradtheRad Super Moderator Staff member Joined Apr 1, 2011 Messages 15,470 Helped 2,906 Reputation 5,824 Reaction score 3,034 Trophy points 1,393 Location Minneapolis, Minnesota, USA Activity points 115,891 Some of your wires are blue. Some are red. Shouldn't they be the same color? The wires do not all appear to be aligned. There are small red blocks next to small blue blocks. Are they connected at the ends? I'm not sure they are. Here is a screenshot of my simulation:
